 超伝導線材・導体の磁化・交流損失特性を高精度に評価できる測定システムを開発し、国研、他大学、企業と共同で、 さまざまな超伝導線材・導体の電磁特性を評価・解析して、その特性改善を図るとともに、 実際の超伝導機器設計へ測定データを提供しています。測定法は、本研究グループで長年に亘り独自に開発したものであり、 超伝導線材の磁化・交流損失測定法の世界標準として規格化されつつあります。現有設備は、超伝導線材・ 導体が適用される実際の使用環境を模擬して、試料温度は液体ヘリウム温度(4.2K)から液体窒素温度(77K)、 磁界印加角度はテープ線材であれば幅広面に平行(0°)から垂直(90°)まで可変であり、 幅広い条件下での評価ができるようになっています。

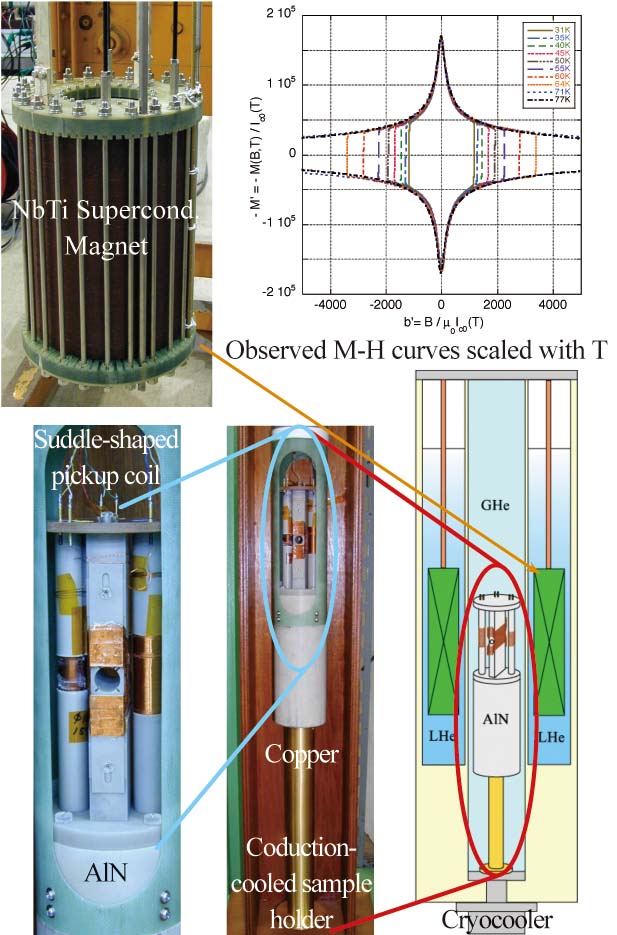

 We have developed highly accurate measurement systems of the magnetization and ac loss properties of superconducting wires and cables. In collaboration with national laboratories, universities and private enterprises, we are evaluating and analyzing the electromagnetic properties of various kinds of superconducting wires and cables for the improvement in property. In addition, we are providing the observed results for the design of superconducting machines and devices. The present measurement system have been developed originally by our research group over a long term of years. The method is going to be regulated as the global standard of ac loss measurement. In our present system, to simulate the actual environment, temperature in sample space can be set at 4.2 K to 77 K and the direction of applied magnetic field can be set in parallel to perpendicular against the sample tape face.
